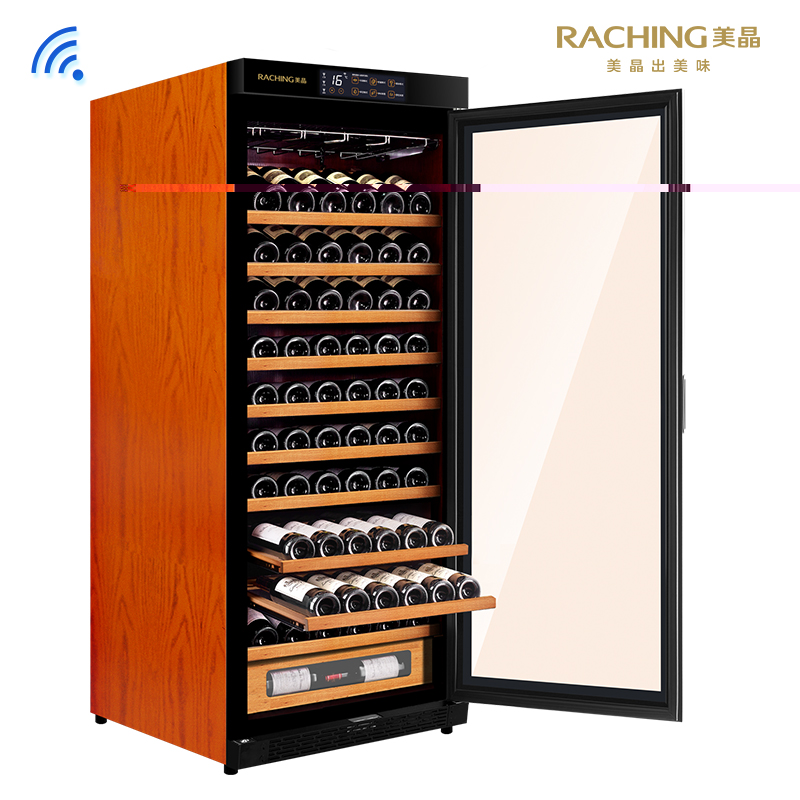

W330A-MC

The new features of Raching intelligent wine cabinet:

WiFi intelligent remote control ;

WeChat controlled temperature;

5-22 ℃ storage temperate range;

Independent zone of 20 ℃ to storage with the best taste temperature;
360 ° circulating air cooling;

Fashionable black crystal LCD touch panel;

The LED lamp belt.

Share:
Product Details

Creative Technology




Wine cabinet can meet both long-term

storage and instant wine tasting needs



WeChat allows remote control of temperature
and various modes




Industry original 20 ℃ independent ZONE design,


Create the best temperature for instant wine tasting


For long-term storage of famous wines
and  cellaring mode temperature control,
A key set management of15 ℃



Introduction

· 1. The Whirlpool Embraco refrigeration compressor imported from United States, specially designed for thermostatic wine cooler ;

· 2. The imported natural high-quality cherry /oak solid wood for unique design cabinet;

· 3. Environmental protection paint coating effect with different colors;

· 4. The unique patent removable refrigeration unit temperature control mode, easy to installation, convenient dis-assembly and maintenance

· 5. Computer intelligent temperature control , the whole ambient temperature is between 6 to 18 ℃;

· 6. The innovation of refrigeration air supply system is placed on the top of the wine cabinet. The cold air flows from the top of the cabinet to the bottom of the cabinet.

· 7.Activated carbon device to remove peculiar smell and ventilated convection hole to avoid peculiar smell remaining in the cabinet;

· 8. Backlit LCD touch display screen with creative wine glass pattern display;

· 9. "Dry and wet separation" technology between the cabinet and the refrigeration system, no frost or condensation water leave in the cabinet;

· 10. Door body deformation prevention design, door body make with solid wood material embedded with aluminum alloy keel and insulation cotton, to avoid the temperature difference and deform problems of common solid wood door ;

· 11. Fashion and simple design frameless double-layer tempered glass door with dark brown color and  anti-ultraviolet design;


· 12. Each wine cabinet is equipped with four display modes of wine racks:lay flat, reclining, layering and draw out;
· 13.special colored decorative for the liner in the industry and breaks through the tradition of ABS liner.


· 14. Imported beech Solid wood from Europe for the racks, buffing by hand without paint, food-grade wine storage environment control;

·15.All-copper tube refrigeration system, strong corrosion resistance, 5 times longer service life than normal refrigerator;
·16. The wine cabinet shall be equipped with security lock.

Main features

Wood colour of cabinet

Red/Brown/Black

Cabinet Type

Standing alone

Model

W330A-MC

Brand

RACHING

Product Name

Wine cooler

Warranty

1 year

Dimensions

H1620xW600xD610mm

Function(s)

Maturing

Door details

Tempered dark brown glass door

Door opening direction

Right or left

Capacity

100bottles(750ml)

Type of interior lighting

LED

The Quantity of shelves

sliding shelf x 1 fixed shelf*9

Internal lighting

Yes

Compressor brand

USA Embraco

Recommended ambient temperature range

18-22°C

Can be fitted

No

Temperature display type

Backlit LCD touch screen

Humidity Filter

Yes

Humidity measurement

Yes

Temperature setting range

5°-22°C

The temperature control mode

Computer temperature control

Lock

Yes

Humidity display

Yes

External covering

Oak/cherry wood

Coolant

R600A

Shipment specifications

Gross weight

100kg

Net weight

85kg

Package size

H1840*D720*W720mm

Container volume

20container=24units  40container=48units





Wine cabinet can meet both long-term
storage and instant wine tasting needs



WeChat allows remote control of temperature
and various modes


Industry original 20 ℃ independent ZONE design,
Create the best temperature for instant wine tasting

For long-term storage of famous wines
and  cellaring mode temperature control,
A key set management of15 ℃


Introduction

· 1. The Whirlpool Embraco refrigeration compressor imported from United States, specially designed for thermostatic wine cooler ;

· 2. The imported natural high-quality cherry /oak solid wood for unique design cabinet;

· 3. Environmental protection paint coating effect with different colors;

· 4. The unique patent removable refrigeration unit temperature control mode, easy to installation, convenient dis-assembly and maintenance

· 5. Computer intelligent temperature control , the whole ambient temperature is between 6 to 18 ℃ ;

· 6. The innovation of refrigeration air supply system is placed on the top of the wine cabinet. The cold air flows from the top of the cabinet to the bottom of the cabinet.

· 7.Activated carbon device to remove peculiar smell and ventilated convection hole to avoid peculiar smell remaining in the cabinet;

· 8. Backlit LCD touch display screen with creative wine glass pattern display;

· 9. "Dry and wet separation" technology between the cabinet and the refrigeration system, no frost or condensation water leave in the cabinet;

· 10. Door body deformation prevention design, door body make with solid wood material embedded with aluminum alloy keel and insulation cotton, to avoid the temperature difference and deform problems of common solid wood door ;

· 11. Fashion and simple design frameless double-layer tempered glass door with dark brown color and  anti-ultraviolet design;

· 12. Each wine cabinet is equipped with four display modes of wine racks:lay flat, reclining, layering and draw out;
· 13.special colored decorative for the liner in the industry and breaks through the tradition of ABS liner.

· 14. Imported beech Solid wood from Europe for the racks, buffing by hand without paint, food-grade wine storage environment control;

·15.All-copper tube refrigeration system, strong corrosion resistance, 5 times longer service life than normal refrigerator;
·16. The wine cabinet shall be equipped with security lock.

Main features

Wood colour of cabinet

Red/Brown/Black

Cabinet Type

Standing alone

Model

W330A-MC

Brand

RACHING

Product Name

Wine cooler

Warranty

1 year

Dimensions

H1620xW600xD610mm

Function(s)

Maturing

Door details

Tempered dark brown glass door

Door opening direction

Right or left

Capacity

100bottles(750ml)

Type of interior lighting

LED

The Quantity of shelves

sliding shelf x 1 fixed shelf*9

Internal lighting

Yes

Compressor brand

USA Embraco

Recommended ambient temperature range

18-22°C

Can be fitted

No

Temperature display type

Backlit LCD touch screen

Humidity Filter

Yes

Humidity measurement

Yes

Temperature setting range

5°-22°C

The temperature control mode

Computer temperature control

Lock

Yes

Humidity display

Yes

External covering

Oak/cherry wood

Coolant

R600A

Shipment specifications

Gross weight

100kg

Net weight

85kg

Package size

H1840*D720*W720mm

Container volume

20container=24units  40container=48units
